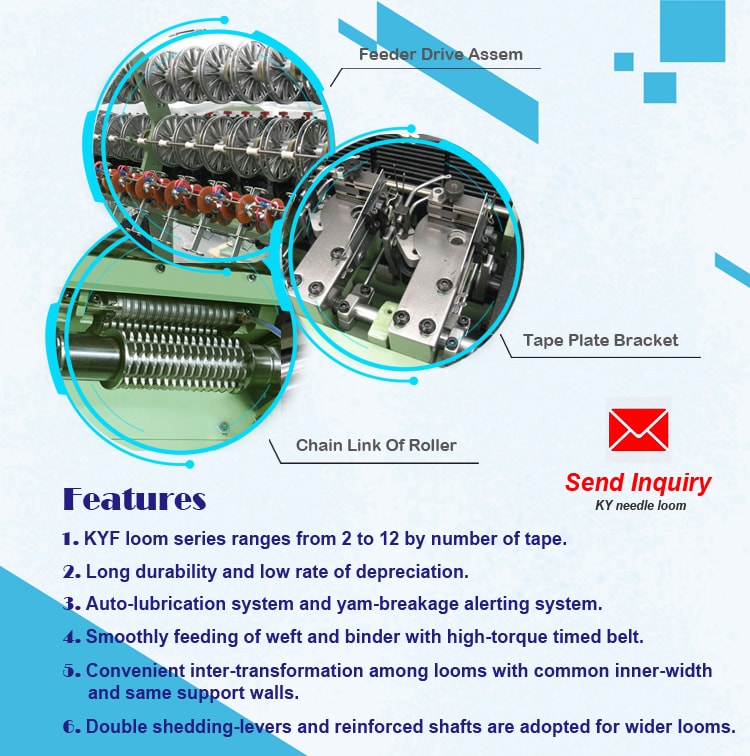

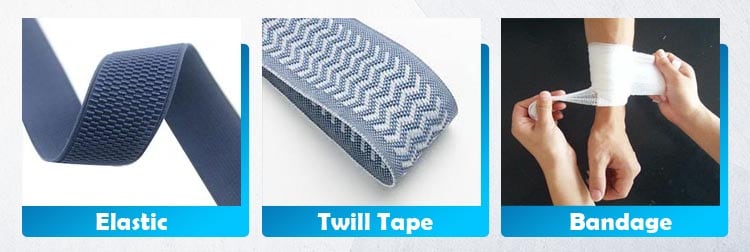

KYF Needle Loom Series application for various tapes output ranges from 2 to 12 by number of tape and width from min. 3mm to max. 110mm, the weft density is available from 350mm to 367mm. To meet customers' need, the same width of the models can be converted each other to different output in number, and the needle loom has quality parts to composition, it can be created most economical value used with long durability, and reduces depreciation rate effectively.
Technical Parameters
MODEL
TAPE
LINES
REED
WIDTH
HEALD
FRAME
PICK
PEPEAT
MAX.
POWER
R.P.M
WEFT
DENSITY
KYF 2/110
2
110mm
16
48
1.1KW
900
3.5-36.7cm
Optional Function Device:
Double take off roller
Double weft single binder
Double-decker device
Single take off roller
Single weft single binder
Extra long chain
Double weft double latch needle
Single weft double binder
Extra large shedding lever
Double weft single latch needle
Rubber feeder
Leno attachment
Double warp picot
Back take off device
Device for under 7mm tape
Double weft picot system
Front take off device
Check tape device
Double weft double binder
Warp feeder – Belt type
CE Certification

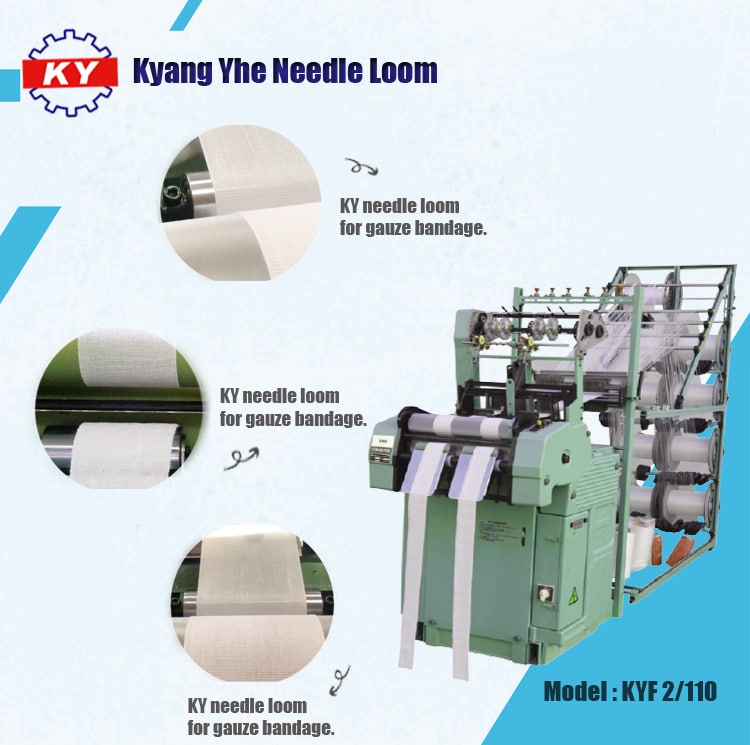

How to produce Gauze Bandage with KY Machines? We have a lot of machinery can produce gauze bandage. According to the customer's sample, including width, thickness, material, function and output. Make it easy for you to produce massively by auto control. Meanwhile guarantee the stability and quality.
*The price is different according to product detail !
